PVX-4141 3.5 kV Bipolar Pulse Generator

Please contact us for availability before placing orders.

The PVX-4141 3.5kV pulse generator is a direct coupled, air cooled, solid state half-bridge (totem pole) design, offering equally fast pulse rise and fall times and low power dissipation.

Available on backorder

The PVX-4141 pulse generator is a direct coupled, air cooled, solid state half-bridge (totem pole) design, offering equally fast pulse rise and fall times, low power dissipation, and virtually no over-shoot, undershoot, or ringing. It has overcurrent detection and shutdown circuitry to protect the pulse generator from potential damage due to arcs and shorts in the load or interconnect cable.

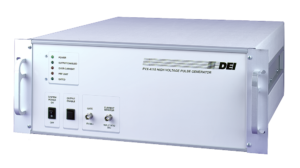

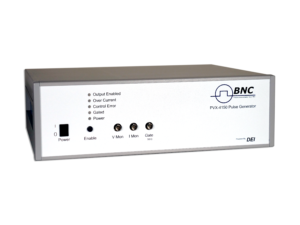

Updating the chassis of the PVX-4141, the features integrated rack mounting, brighter and more visible front panel LEDs and a modern look and feel.

All control and protection logic, support power, energy storage, and output network circuitry is incorporated into the PVX-4141. It can be connected directly to the load, and does not require series or shunt resistors, impedance matching networks between the pulser and the load, or additional energy storage (capacitor banks). All of this is taken care of within the PVX-4141.

Features
  • 0 to ±3,500 V Pulse Output
  • <25 ns Rise and Fall Times, 30 kHz Pulse Repetition Frequency
  • Protected Against Arcs, Shorts and Load Transients
  • Voltage and Current Monitor Outputs
Applications

The PVX-4141 is well suited for driving extraction grids and deflection plates for electrostatic modulation of particle beams in time-of-flight mass spectrometers and accelerators. Its robust and versatile design also makes it well suited for pulsing or gating power tube grids, Pocket cells and Q Switches, acoustic transducers, microchannel plates, photomultiplier tubes, and image intensifiers.

Max Voltage Amplitude

3,500V

Pulse Polarity

Bipolar (+/-)

Max/Min Frequency

30 kHz

Rise/Fall Time

25ns

Pulse Engine (Trigger)

External

Remote Control

N/A

Form Factor

Benchtop, Rackmount

Dimensions (in)

22x22x12

Weight (lbs)

18



Product
PVX-4141

Accessories
Operating Manual
High voltage input and output cables
DSUB Connector Assembly
Power Cord

Benefits
No need to make the cables yourself or pay for them to be custom made.
