PVM-1001-N

The PVM-1001 can achieve zero to -950 V in less than 10 ns (Rise Time). This adjustable pulsed voltage source is capable of providing pulse widths from 55 ns to 10,000 ns with a standard frequency range up to 1 MHz. The PVM-1001 can also provide a 5 MHz burst. The module is designed for a 50 ohm resistive load.

The output pulse width and frequency are controlled by an external trigger source. The PVM-1001-N requires an external negative high voltage supply. Two models are available, one for positive and another for negative output.

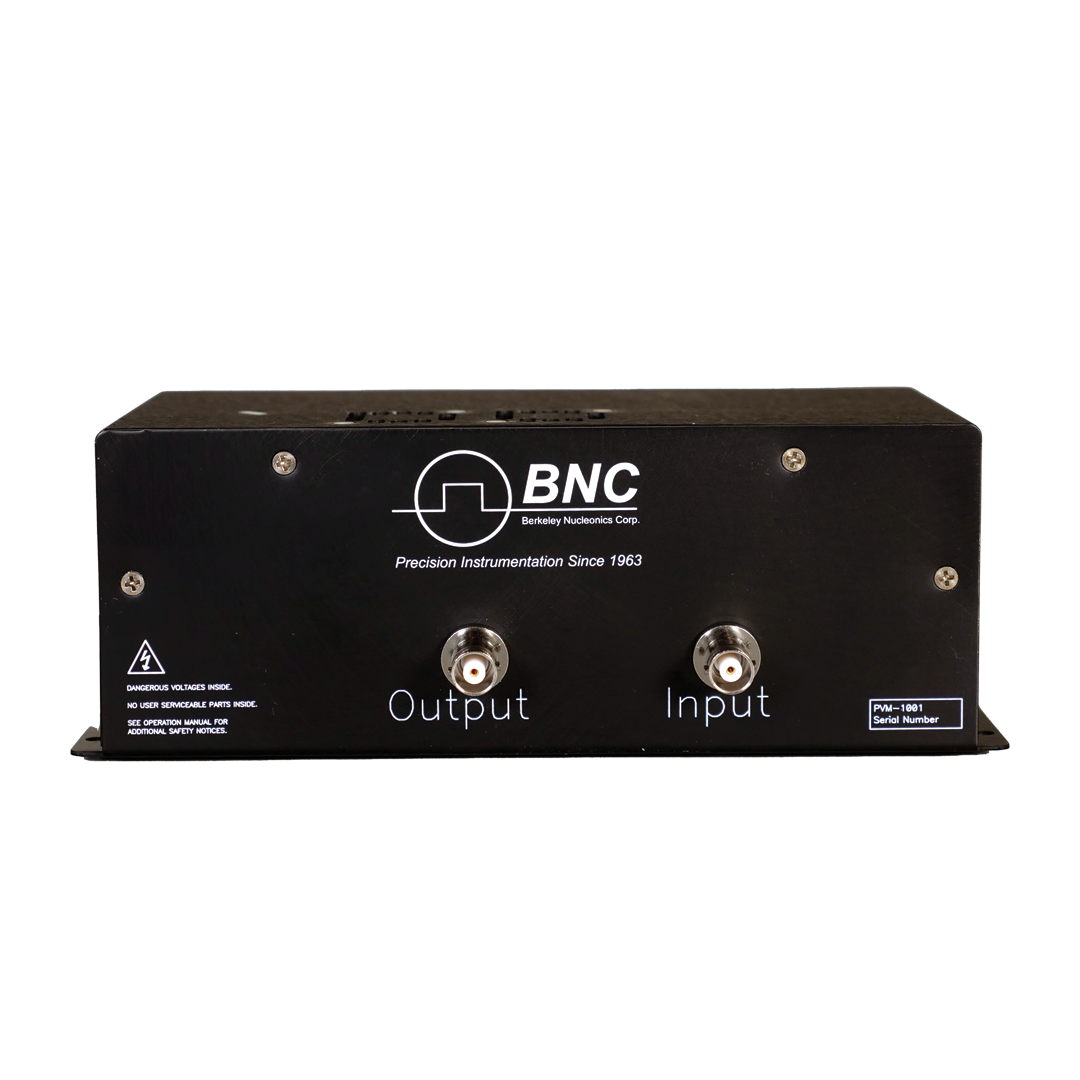

The rear panel of the PVM-1001 has connectors for the high voltage input and pulsed high voltage output. The front panel has an SMB connector for triggering the instrument.

Features

• Output Voltage Range 0 V to -950 V
• Frequency Range ≤ 1 MHz
• Burst Mode ≤ 5 MHz
• Trigger Pulse Width 55 ns ≤ Pulse Width ≤ 10,000 ns
• Rise Time ≤ 8 ns @ 200 V to 950 V
• Positive or Negative polarity modules available
• Maximum Output Power 208 W
• Simple to set up and use

Applications

Typical applications are instrument calibration, component testing, beam steering and PMT and MCP gating.
