Laser Diode Drivers

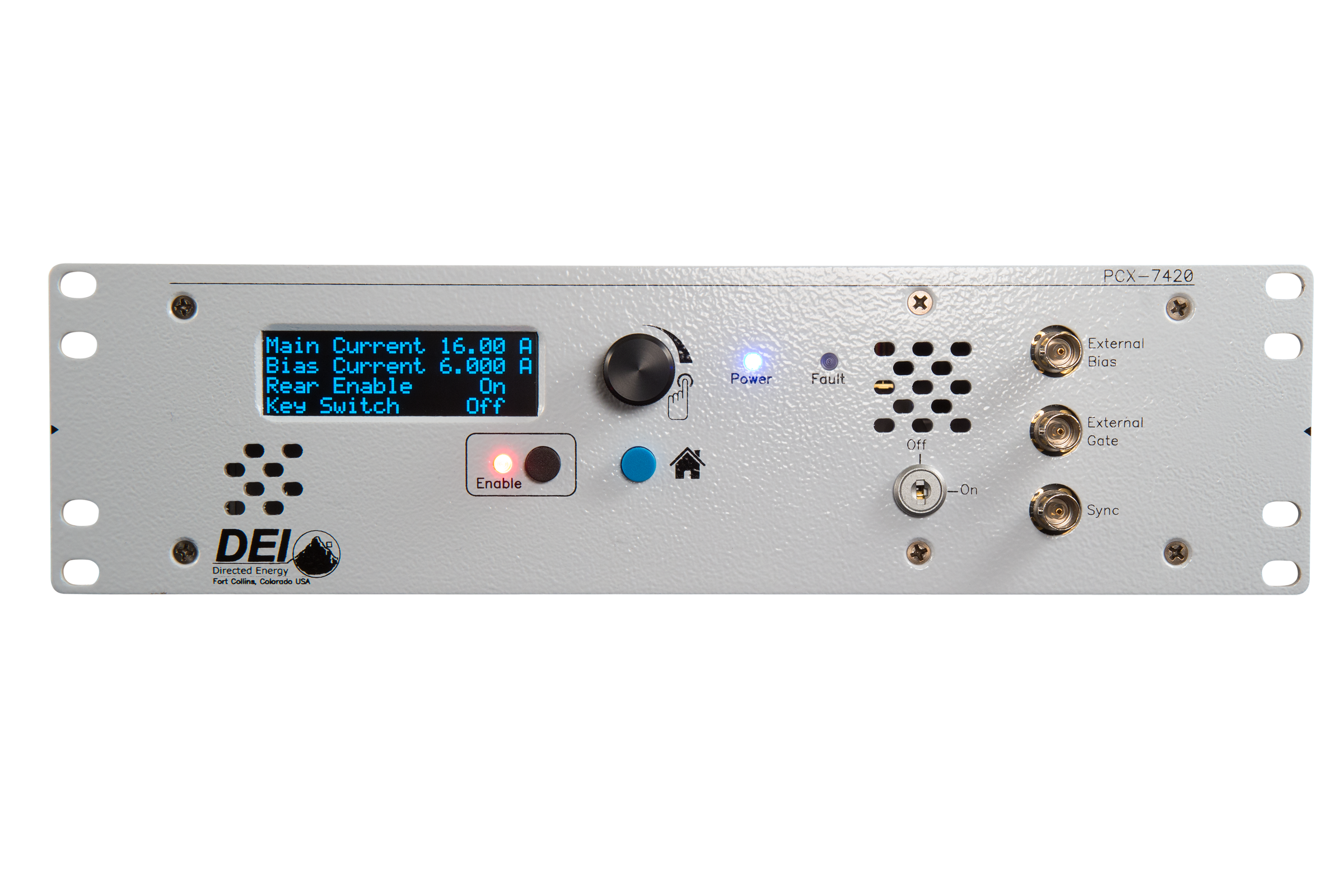

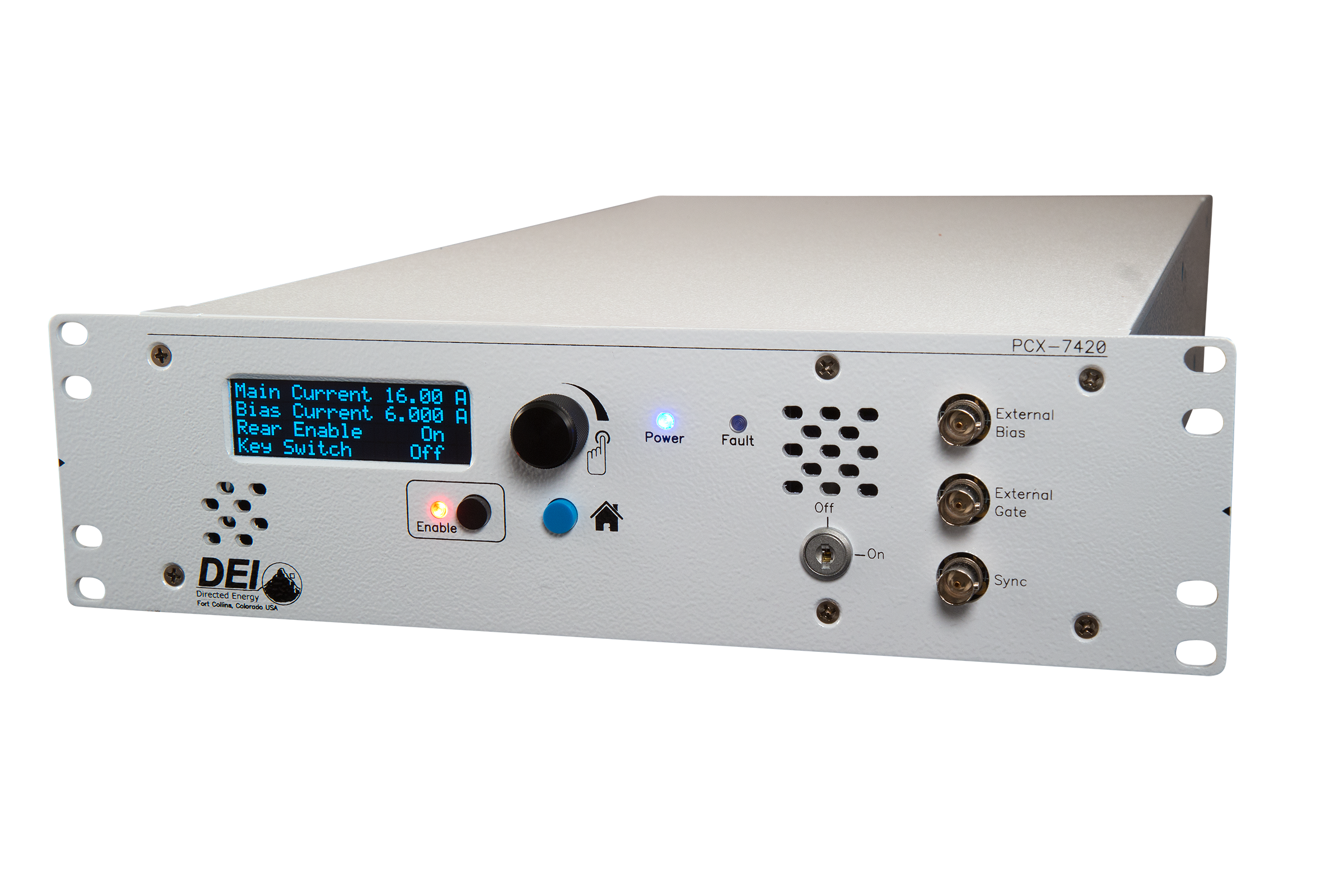

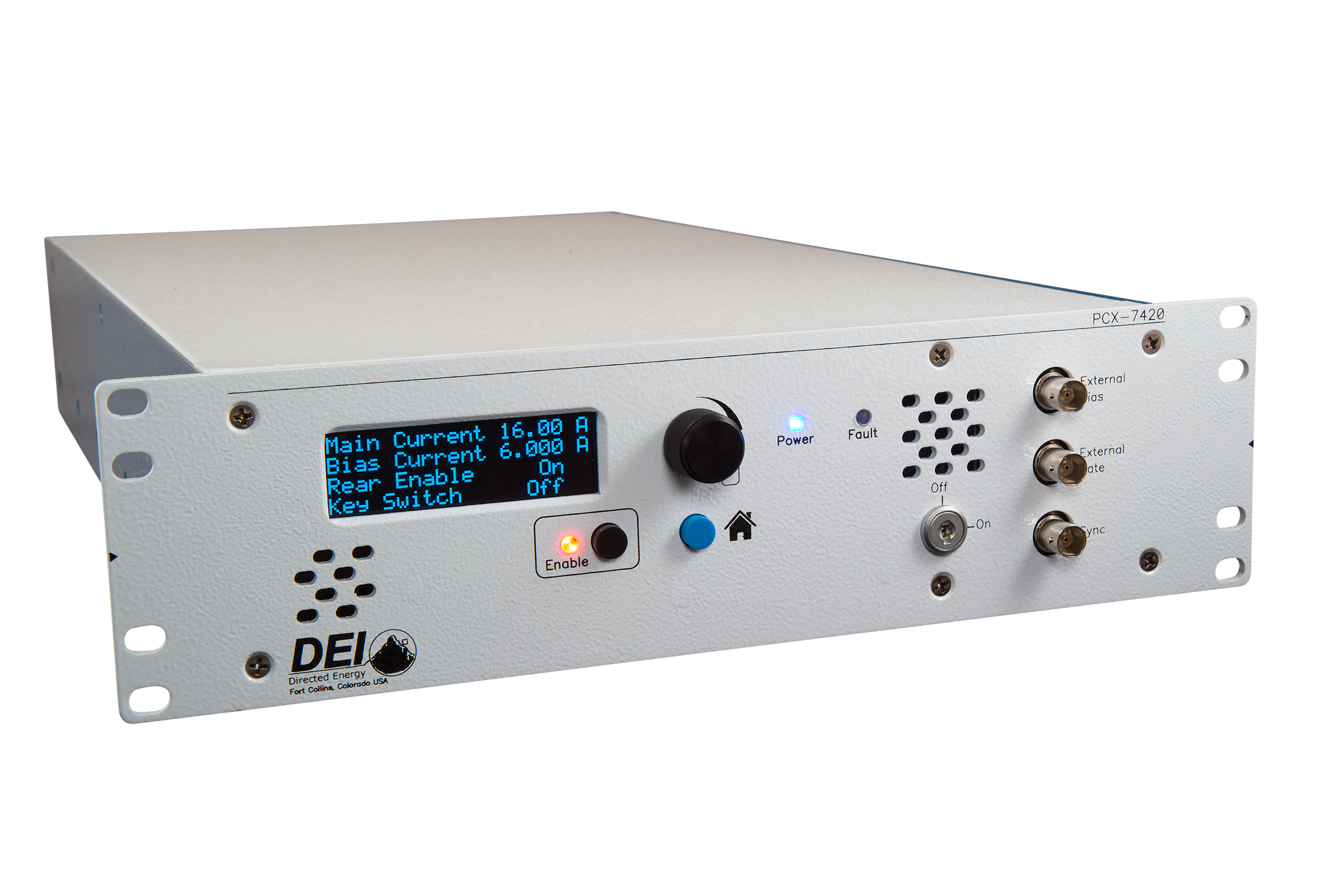

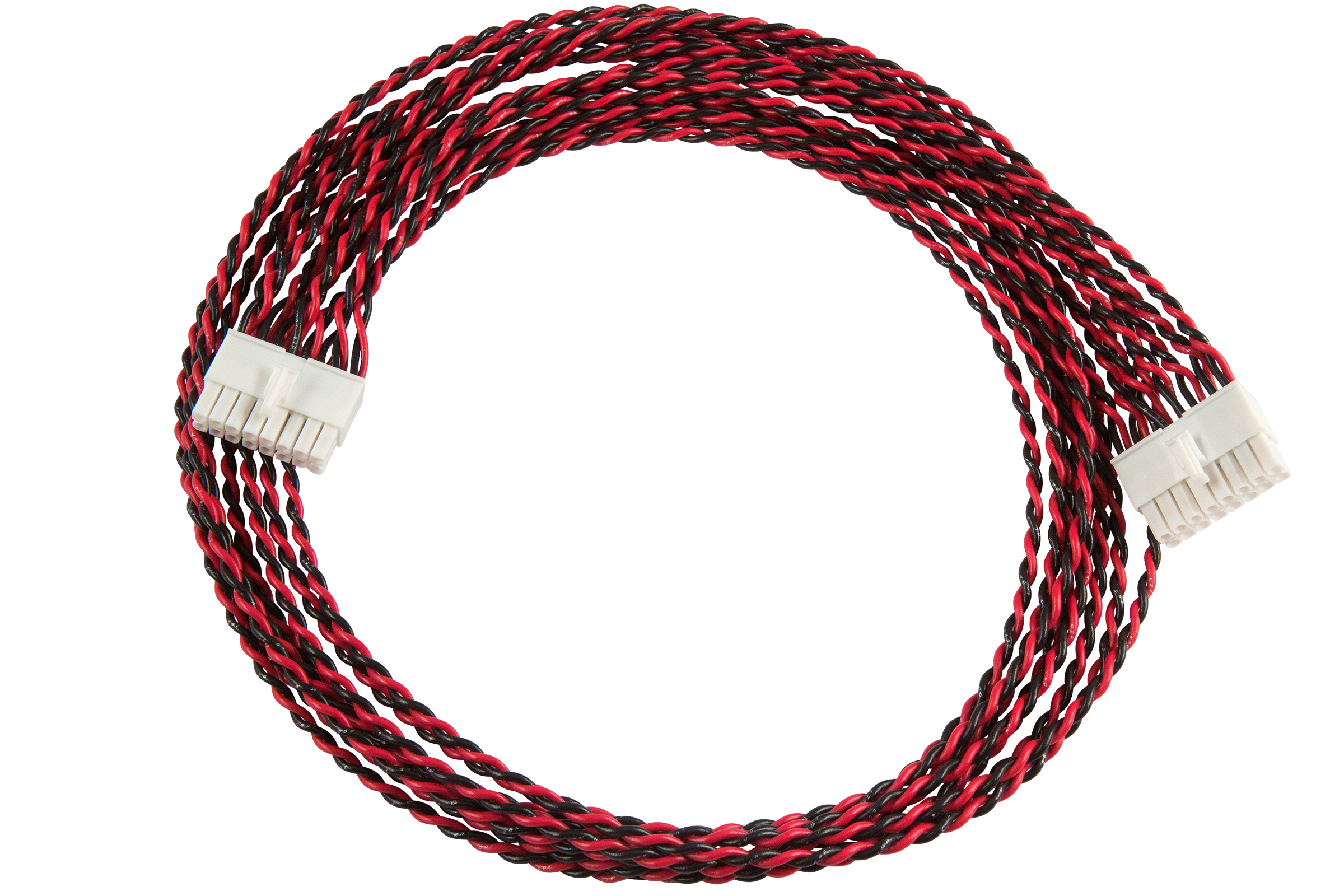

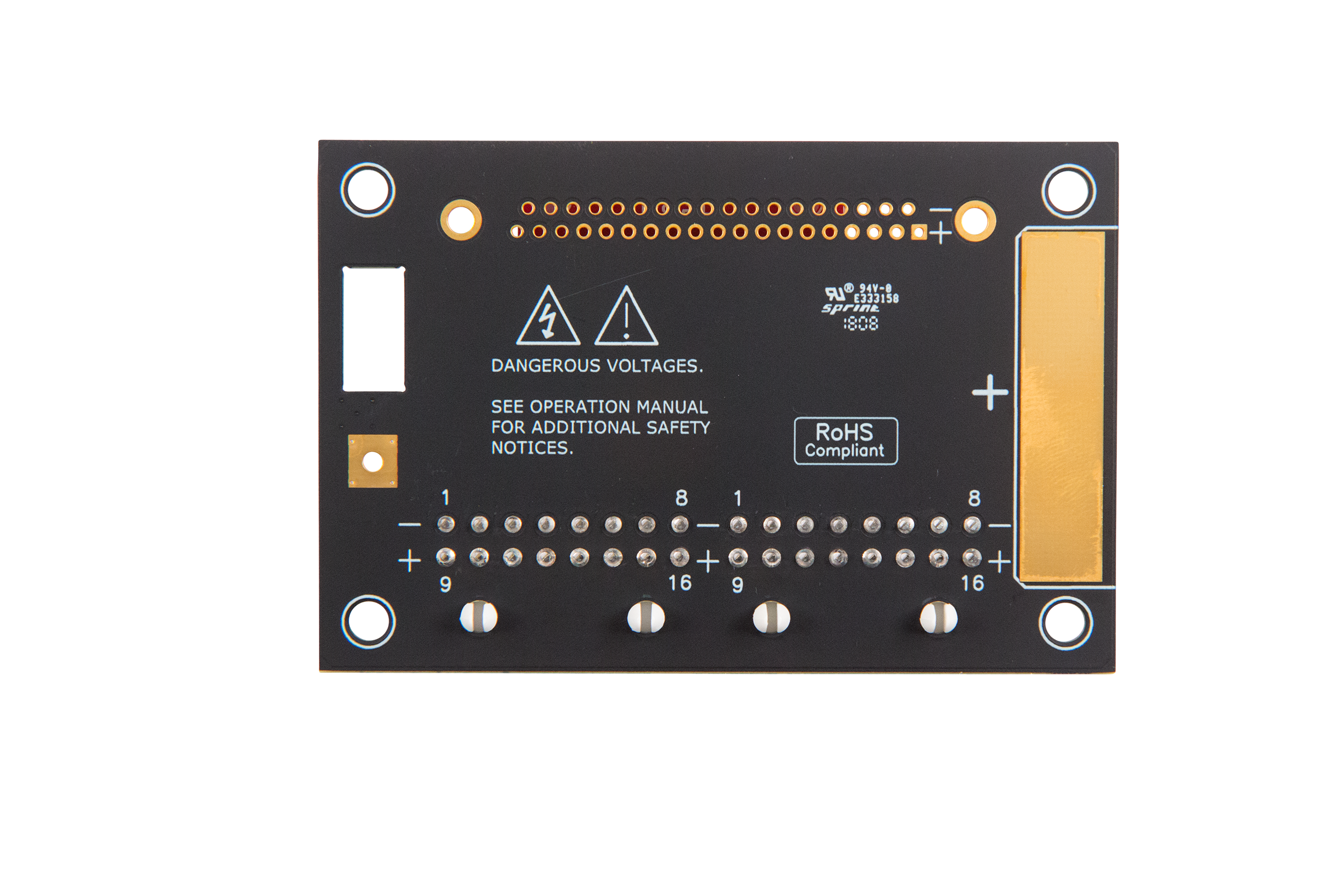

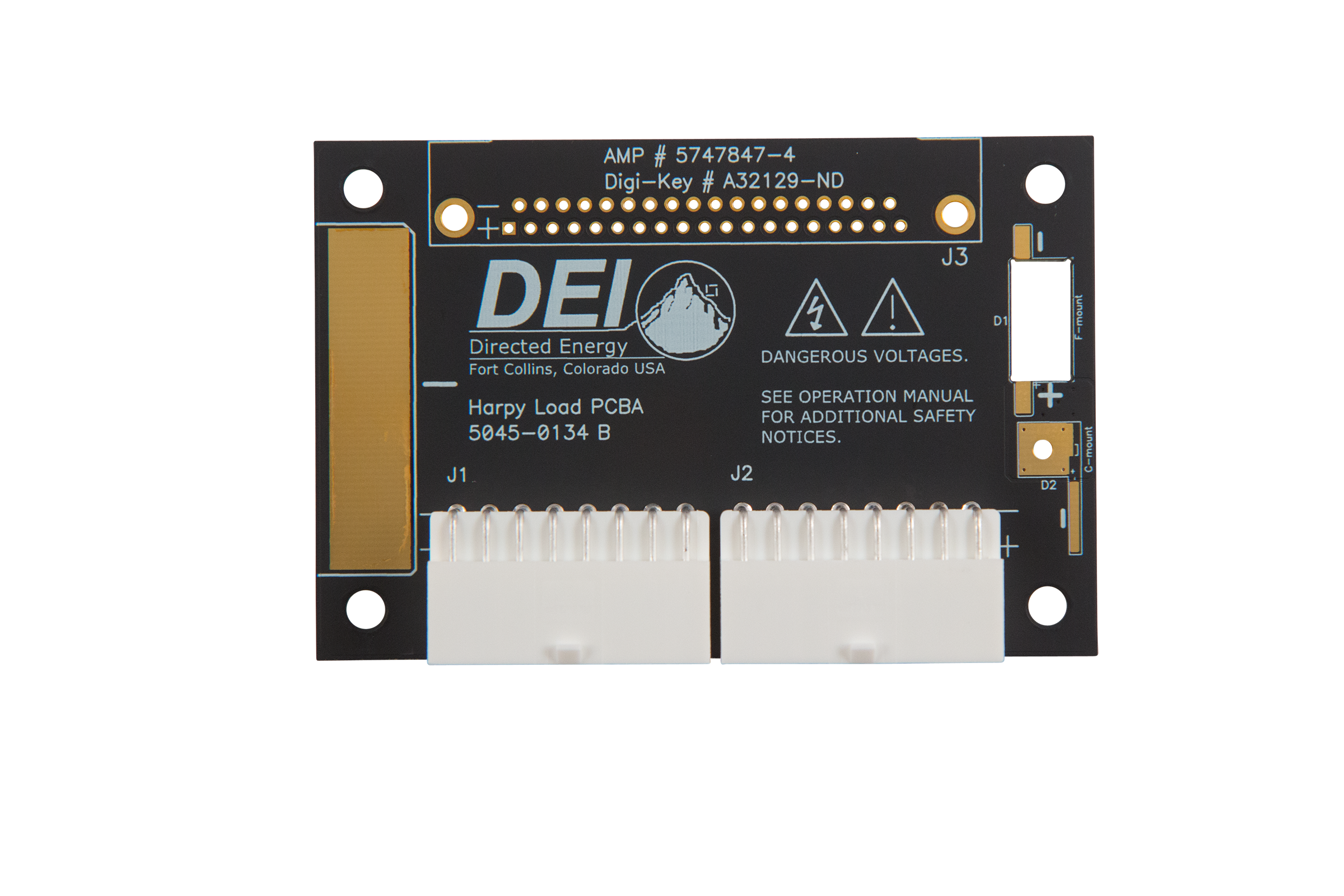

PCX-7420-B
Precision Pulsed Current Source
The PCX-7420-B offers the capability of providing both QCW (pulsed), and CW (DC) outputs. It can serve as a CW driver at currents from 0.050 A to 5.8 A, and as a pulsed/QCW driver at currents from 50 mA to 21.5 A. Furthermore, the output may be biased to any CW current from 3 A to 5.8 A, then pulsed above this bias current at up to 15.7 A maximum. A new feature allows the bias current to be pulsed and triggered independent of the main current trigger.
Features
- Pulsed Output Current of 50 mA to 21.5 A
- CW Output Current of 0.50 A to 5.8 A
- Bias Current for 3.0 A to 5.8 A
- Output Voltage up to 24 V
- Output Power up to 250 W
- Easy to read OLED display
- RS-232 and USB computer interfaces
Applications
The PCX-7420-B is designed to drive diode lasers, bars and arrays with forward voltage drops up to 24 V.
Specifications
| Voltage | 24V |
|---|---|
| Current | 21.5A |
| Max Power | Up to 380 W, depends on model |
| Pulse Width | 100 ns – 500 ns |
| Rise / Fall | 25ns |
| Max Frequency | 1 MHz |
| Polarity | Positive |
| Trigger | External, Internal |

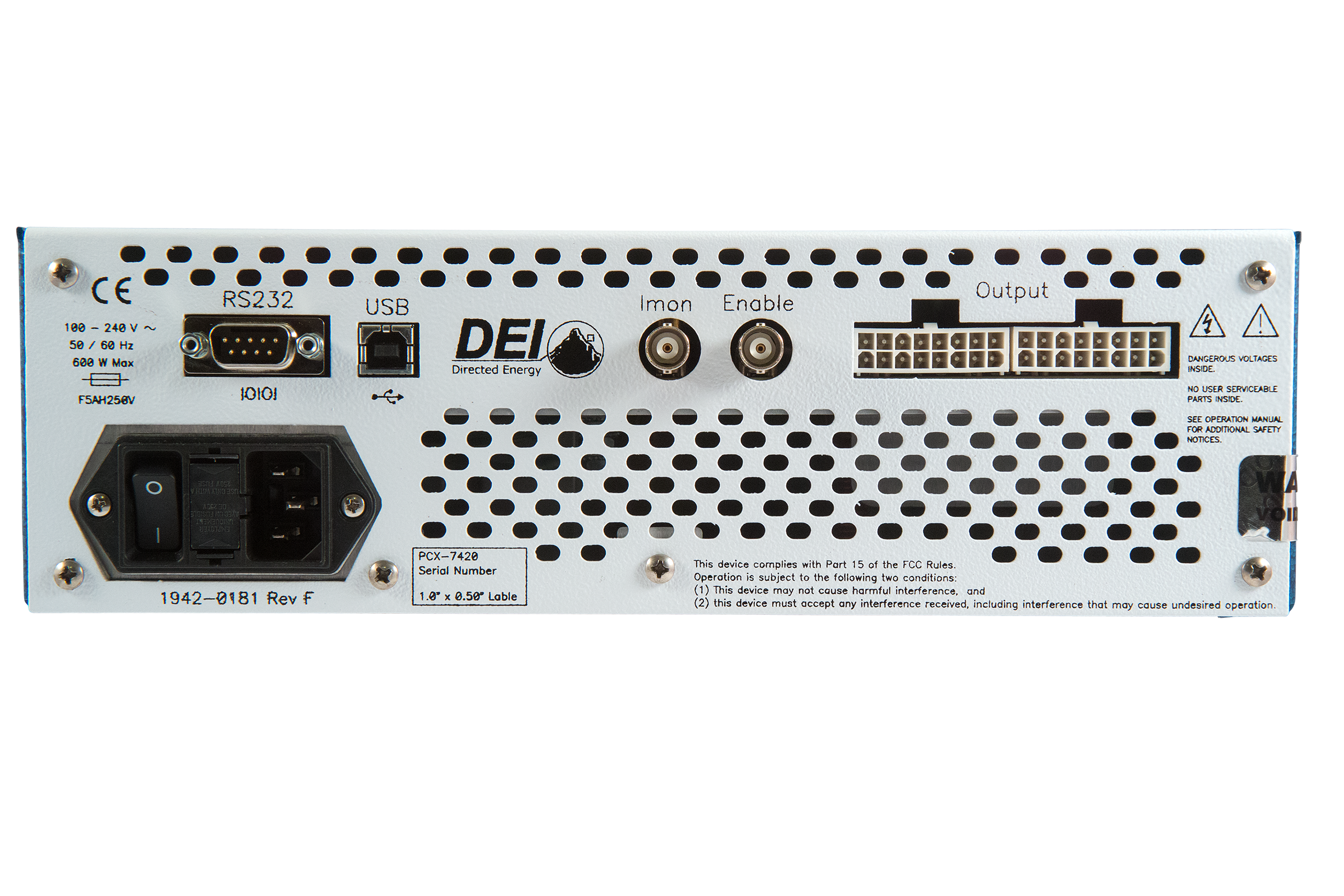

| Remote | RS232, USB |
| Cooling | Forced Air |
| Form Factor | Benchtop |
| Shipping Dimensions | 28x17x11 |
