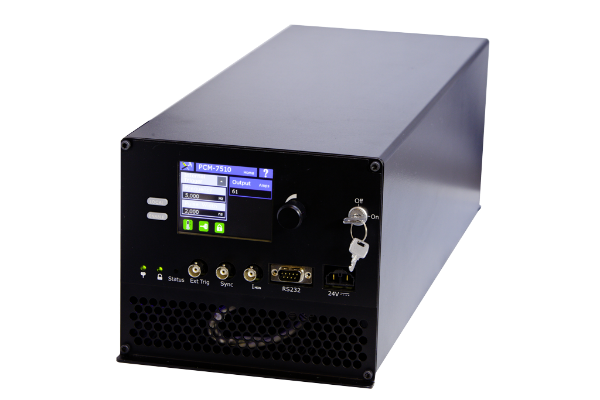

PCM-7510
The PCM-7510 pulsed laser diode driver delivers current pulses variable from 10A to 250A with up to 1250W of total output power. Pulse widths from 5μs to 5ms, rise and fall times of 2μs to 8μs.
The unit is obsolete
The PCM-7510 pulsed laser diode driver delivers current pulses variable from 10 A to 250 A with up to 1250 W of total output power. Pulse widths can vary from 5 μs to 5 ms with rise times and fall times of 2 μs to 8 μs. An internal trigger provides pulse repetition frequencies from 40 Hz to 5000 Hz. Operating the instrument is simple, utilizing the color touch screen and intuitive graphical user interface. The instrument can also be controlled utilizing a standard RS-232 interface with a few simple commands and queries.
Features
- Output Current up to 250 A
- Output Voltage up to 120 V
- Output Power up to 1250 W
- 5 μs to 5 ms Variable Pulse Width
- Touch Screen Operation
- RS-232 Computer Interface
Applications
The PCM-7510 is designed to drive laser diodes, bars and arrays with forward voltages from 0.7 V to 120 V and output power up to 1250 W.
Specifications
| Voltage | 120V |
|---|---|
| Current | 250A |
| Max Power | Vforward (V) 120 – 100 99 – 10 9 – 5 Output Power (W) 1250 (Vforward*12.5A) 100 |
| Pulse Width | 5 μs to 5,000 μs |
| Rise / Fall | 3μs |
| Max Frequency | 6 kHz |
| Polarity | Positive |
| Trigger | External, Internal |
| Remote | RS232 |
| Cooling | Forced Air |
| Form Factor | Module |
| Shipping Dimensions | 28x23x13 |
| Shipping Weight | 35 |
